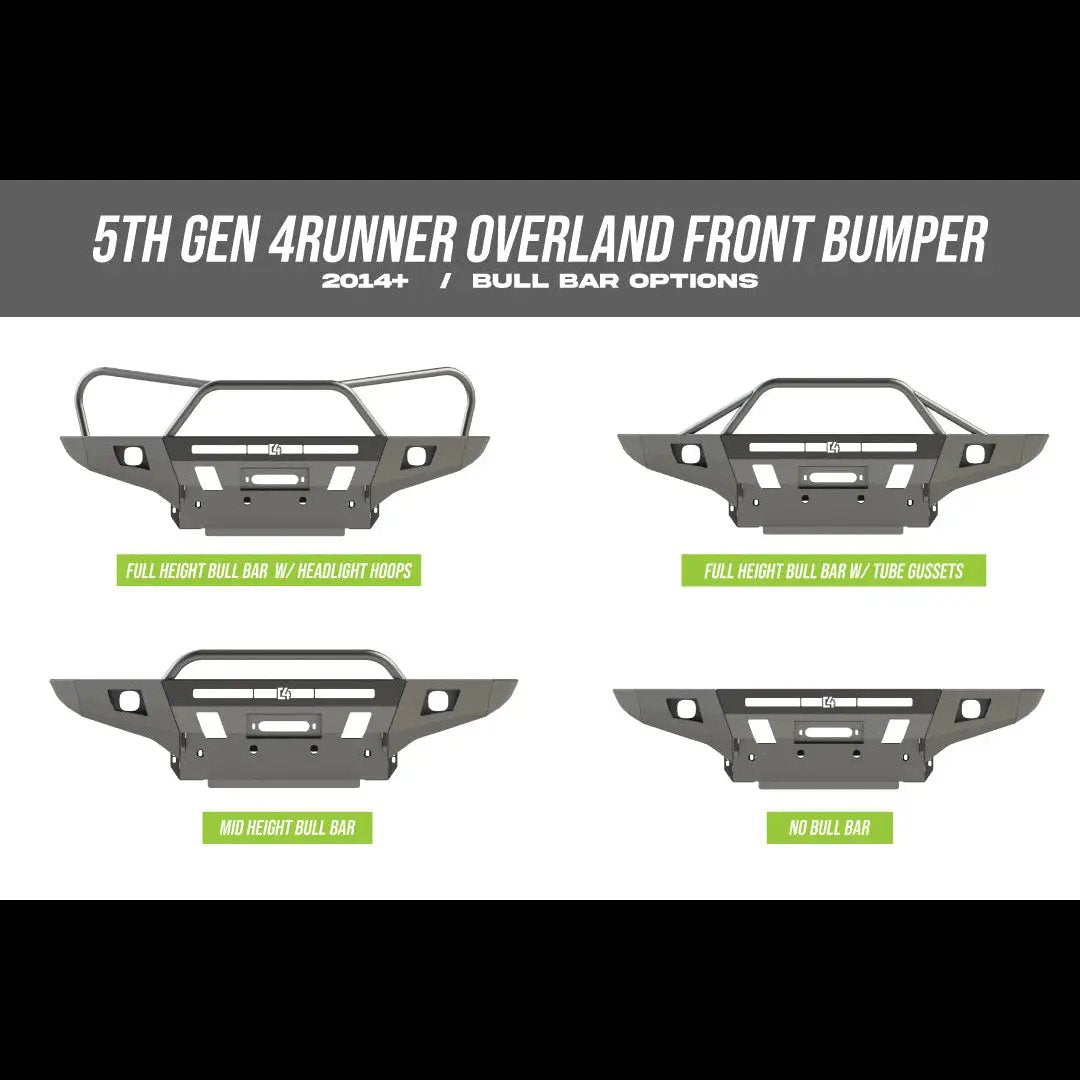

C4 Fabrication 4Runner Overland Series Front Bumper / 5th Gen / 2014-2024

The C4 Fabrication 4Runner Overland Series Front Bumper for the 5th Gen 2014–2024 is built for off-road enthusiasts who demand serious protection, increased tire clearance, and reliable winch capability. Engineered to deliver better approach angles and compatibility with larger tires, this bumper pairs rugged steel construction with practical mounting options for real-world trail use.

Key Features

• 3/16" laser-cut P&O steel construction with 1/4" thick mounting plates
• 3/4" thick D-Ring tabs standard on every bumper, fully welded front and back
• Bull bar tubing:.120" wall, 1 3/4" diameter HREW
• Not compatible with mid-height bull bar
• If you have TSS, you must select YES for the TSS relocation bracket
• Fits most winches 8k–12k in size
• Winches with relocated electrical control box recommended; integrated control box winches may require trimming of grille support brackets
• Common compatible winches: ComeUp, Smittybilt X20, Warn Zeon, and VR series
• Recommend synthetic rope with a hawse-style fairlead for best fit and function
• Some roller fairleads may be too large to fit the recessed fairlead mounting plate
• Not compatible with MTM front camera without relocating the camera above the bumper
• Weight varies by configuration: 135 lbs without bull bar; 140 lbs with mid-height bull bar; 150 lbs with full-height bull bar; 155 lbs with full-height bull bar and headlight hoops
• Designed to fit 30" single-row light bars (specifically designed for Baja Designs S8)
• Also compatible with Extreme LED 30" 5D and RIGID 30" SR series
• Requires cutting the original plastic bumper cover to install
• Power steering cooler lines must be replaced with the included cooler kit; installation is straightforward and does not require draining the power steering system
• Replacing lines provides more room for the winch and removes the low-hanging U-shaped portion near where the bumper bolts to the frame
• Finish options: unless you choose the powder-coated option, the bumper will need to be painted or powder coated to prevent rust

Compatibility & Fitment

• Designed specifically for the Toyota 4Runner 5th Gen (2014–2024)
• Supports winches in the 8k–12k range; relocation of the electrical control box is recommended for most installations
• MTM front camera is not compatible unless the camera is relocated above the bumper
• For TSS-equipped vehicles, a TSS relocation bracket is required; not compatible with mid-height bull bars

Installation & Practical Considerations

• Requires cutting the original plastic bumper cover for installation
• Includes power steering cooler kit; lines are replaced to create additional space for the winch and protection from debris
• Removal of the original steel power steering cooler lines is replaced by C4’s cooler kit without draining the system
• To prevent rust, either opt for powder coating or plan for painting prior to installation
• Recommends synthetic rope and a hawse fairlead for optimal performance; some roller fairleads may not fit the recessed fairlead plate
