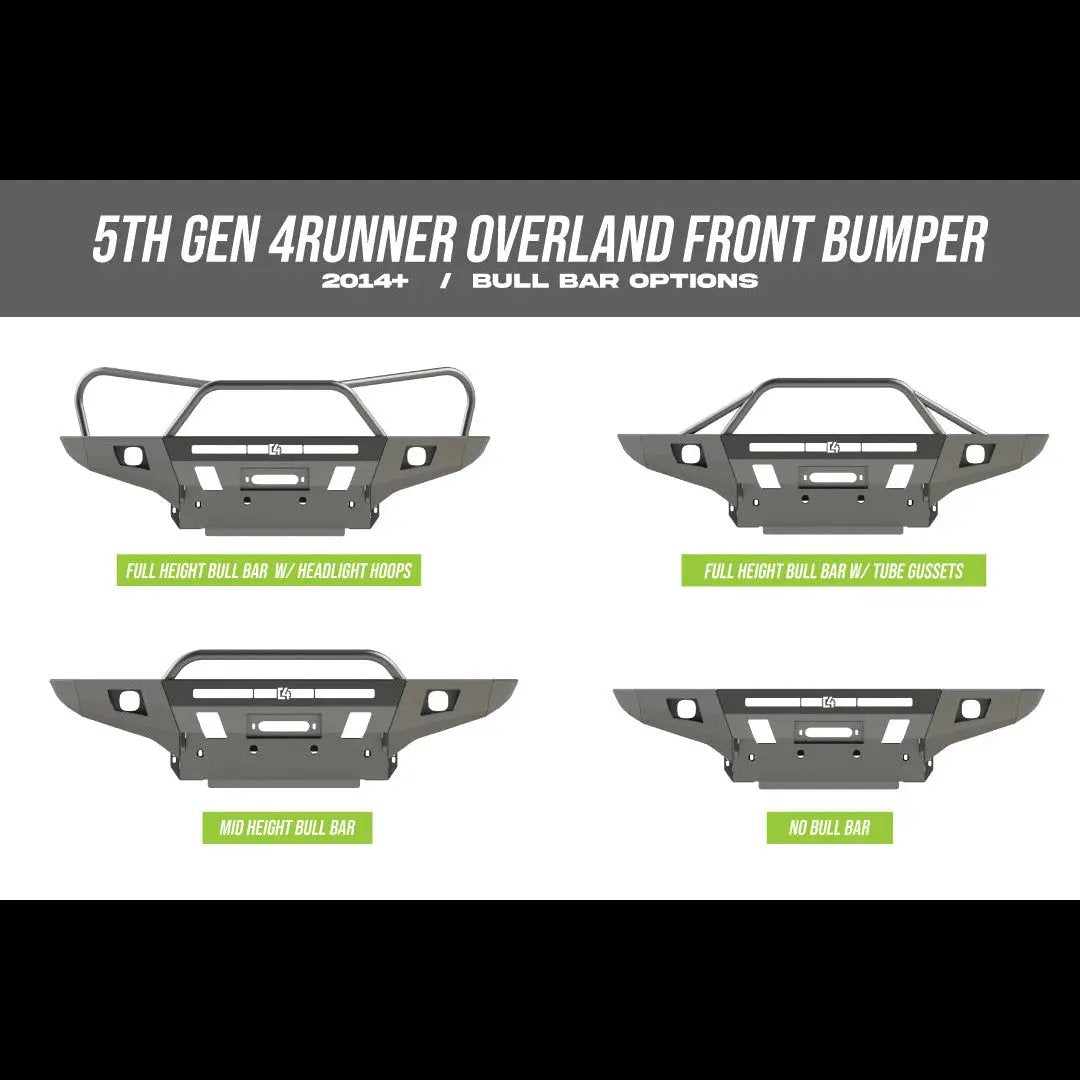

C4 Fabrication 4Runner Overland Series Front Bumper / 5th Gen / 2014-2024

Take your 4Runner to the next level with the C4 Fabrication Overland Series Front Bumper for the 5th Gen (2014–2024). This rugged, winch-ready bumper is engineered for overland adventures, delivering increased tire clearance, improved approach angles, and a solid platform for larger tires. Built to withstand off-road challenges while enabling bold lighting and accessory setups, it’s a true upgrade for serious explorers.

Construction & Design

• 3/16" laser-cut P&O steel body with 1/4" thick mounting plates
• 3/4" thick D-Ring tabs, fully welded front and back
• .120" wall, 1-3/4" diameter HREW bull bar tubing
• Requires cutting the original plastic bumper cover for installation

Winch, Electrical, and Fitment

• Fits most winches in the 8,000–12,000 lb range; relocation of the electrical control box is recommended
• Integrated control box winches may require trimming of grille support brackets to fit
• If you have TSS, a TSS relocation bracket is required (not compatible with mid-height bull bar)
• Common compatible winches include ComeUp, Smittybilt X20, Warn Zeon, and VR series
• Recommend synthetic rope with a hawse-style fairlead for best fit and function; some roller fairleads may be too large for the recessed fairlead plate
• Not compatible with MTM front camera without relocating the camera above the bumper

Lighting, Bar, and Accessory Compatibility

• Designed to accommodate a 30" single-row light bar (specifically Baja Designs S8)
• Will also fit Extreme LED 30" 5D and Rigid 30" SR series bars

Lighting Bar and Clearance Notes

• Offers more clearance for better approach angles and easier fitment of larger tires
• Some light bar configurations may require extra trimming or fitment checks with the bumper’s recessed mounting plate

Installation & Maintenance

• Power steering cooler lines must be replaced with the included cooler kit during install; installation is straightforward and does not require draining the power steering system
• Replacing the lines creates more room for the winch and removes the low-hanging U-shaped portion near the bumper bolts, reducing exposure to debris

Finish and Durability

• Unless you choose the powder-coated option, the bumper will require painting or powder coating to prevent rust

Weight and Configurations

• 135 lbs (without bull bar)
• 140 lbs (with mid-height bull bar)
• 150 lbs (with full-height bull bar)
• 155 lbs (with full-height bull bar and headlight hoops)

What You Get and Why It Stands Out

• A heavy-duty, laser-cut steel bumper that maximizes clearance and supports larger tires without sacrificing rig integrity
• Fully welded, robust D-Ring tabs and high-strength bull bar tubing designed for off-road abuse
• Flexible winch options with clear guidance on fitment, electrical relocation, and compatibility
• Strategic lighting compatibility, including Baja Designs S8 and popular 30" bars
• Clear paths for cooler relocation and improved line routing, contributing to better reliability in rugged terrain
