C4 Fabrication 4Runner Full Skid Plates / 4th Gen / 2003-2009

Overview

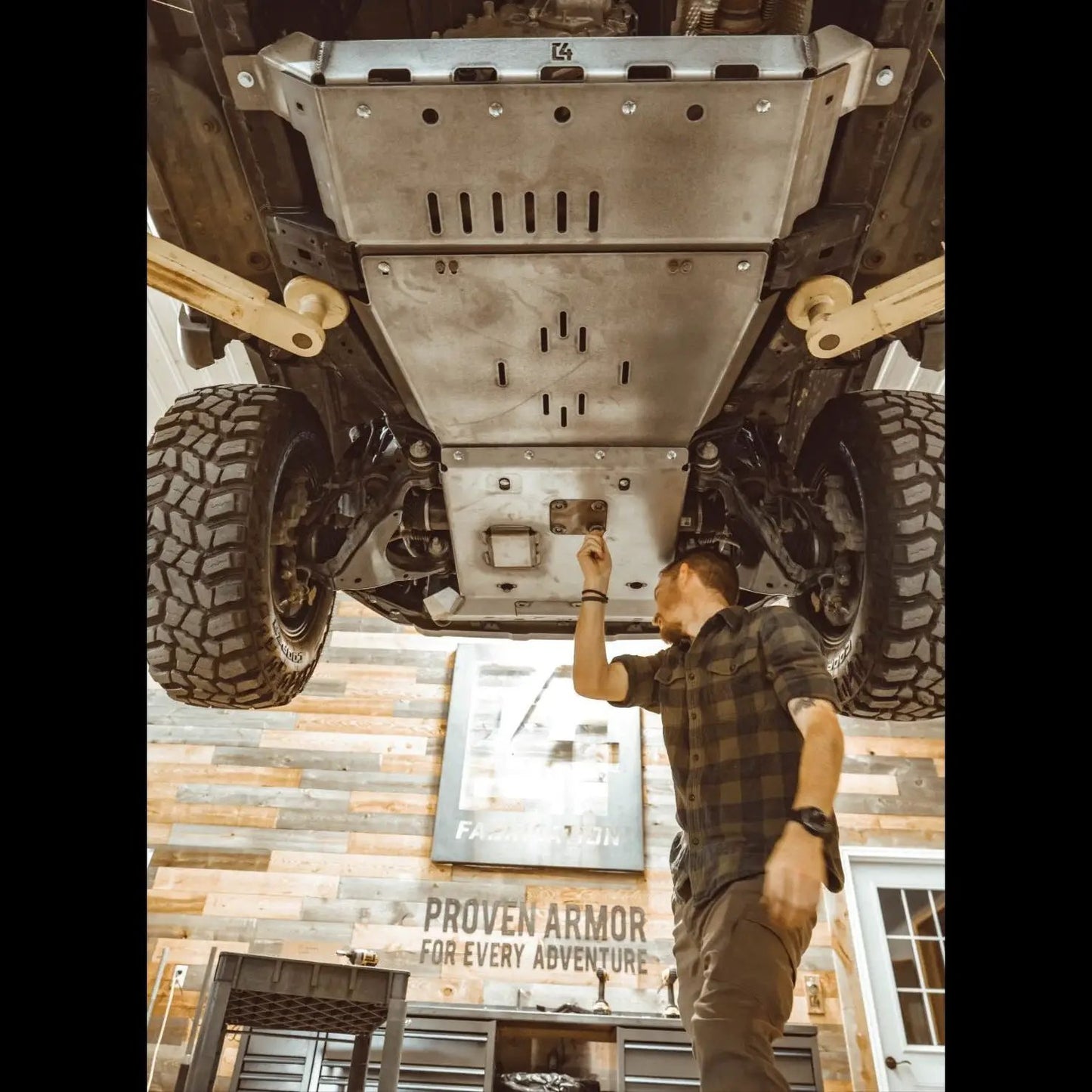

The C4 Fabrication 4Runner Full Skid Plates kit delivers comprehensive underbody protection for the 4th Gen 2003–2009 Toyota 4Runner.Designed as a 100% bolt-on, three-piece system, it shields the engine, transmission, and transfer case while staying serviceable and compatible with common aftermarket accessories.

Protection and Coverage

• Three separate skid plates bolt together to safeguard the engine, transmission, and transfer case with wide coverage.
• Unique bolt-in crossmember enhances strength and protection for the transfer case.
• Oil Drain Cover enables easy oil changes without removing the skid plates.
• Compatible with 1" differential drop and most aftermarket bumpers, expanding your build options.

Construction and Design

• Made from 3/16" CNC-cut P&O steel for robust, durable protection.
• 100% bolt-on design for straightforward installation and removal.
• Includes front and rear skid plates, plus all mounting hardware.
• Total weight: 136 lb (assembly ready for install).

Finish, Compatibility, and Maintenance

• Available in steel only; powder-coated option available for corrosion resistance.
• If you choose no powder coating, the product will need to be painted or powder-coated before installation to prevent rust.

What's Included

• Front skid plate
• Rear skid plate
• All mounting hardware

Specifications and Fitment

• Vehicle: 2003–2009 4Runner (4th Gen)
• Skid plates: Engine, transmission, and transfer case protection
• Material: 3/16" CNC cut P&O steel
• Finish: Steel (powder-coated option available)
• Installation: 100% bolt-on
• Oil drain access: Oil Drain Cover for convenient oil changes
• Diff compatibility: Works with 1" diff drop
• Compatibility: Works with most aftermarket bumpers
• Weight: 136 lb
• Includes: Front and rear skid plates
