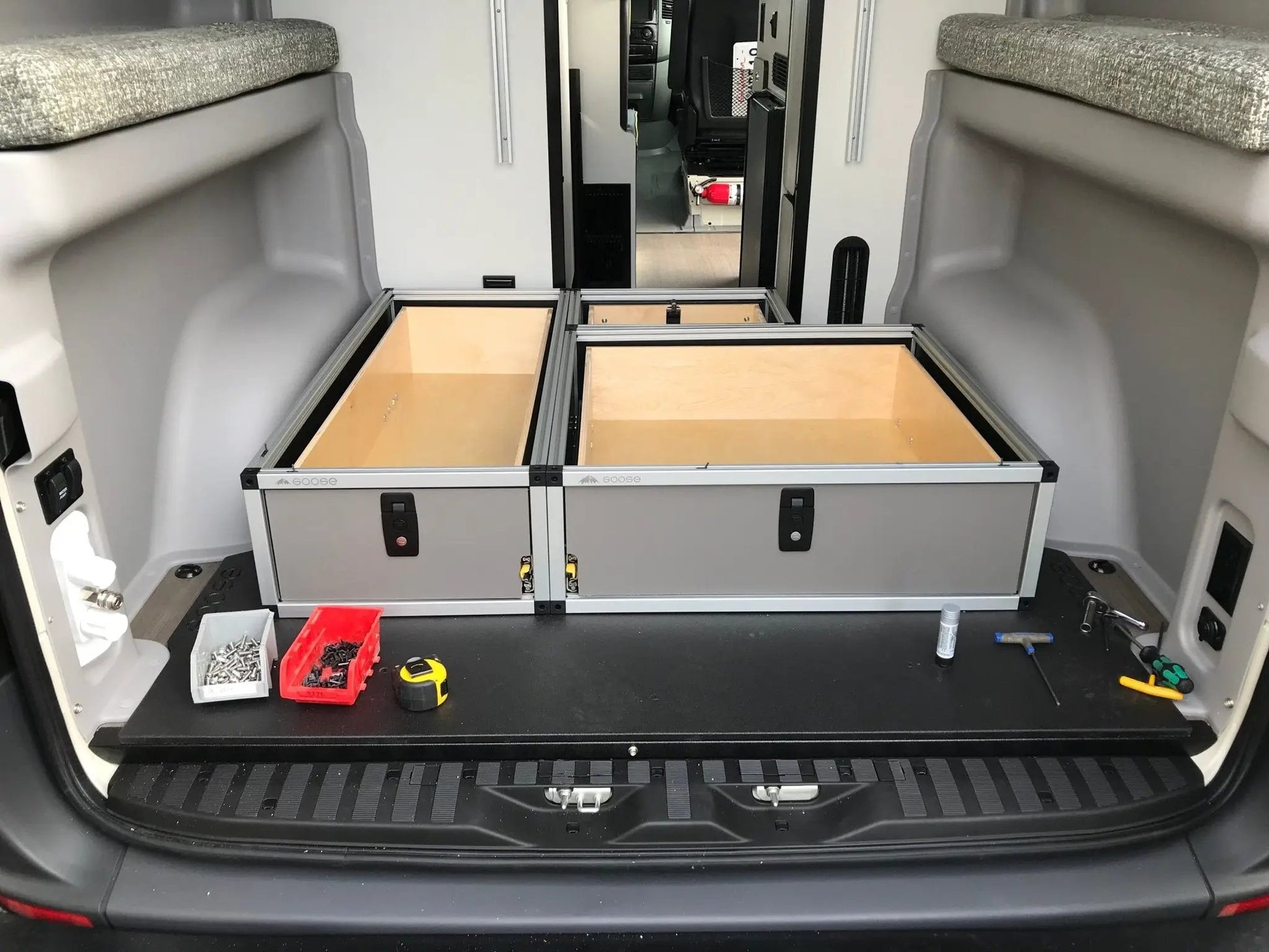

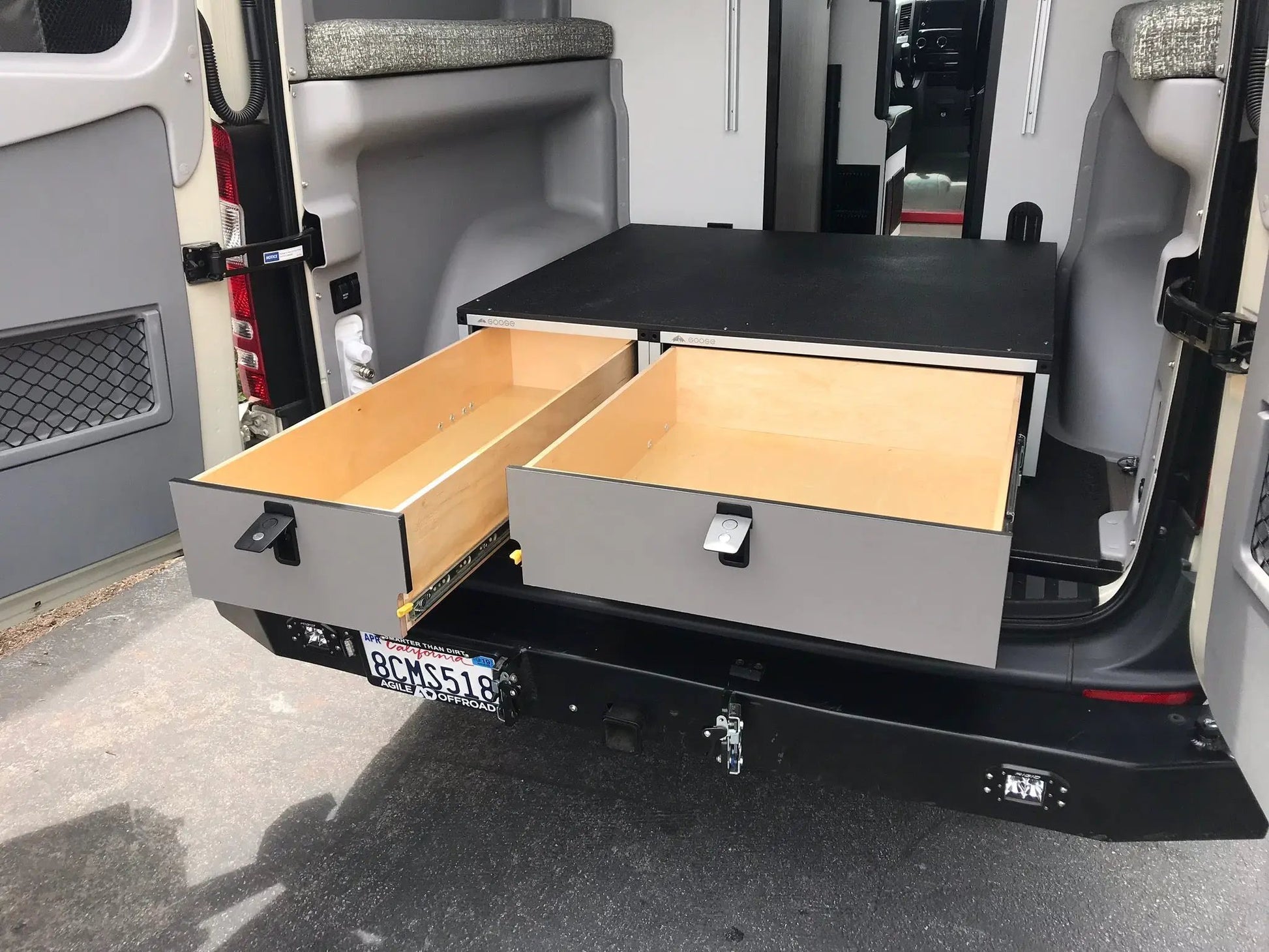

Goose Gear Winnebago Revel Base Drawer System (2017–2020) — Side x Side Storage with Three Drawers

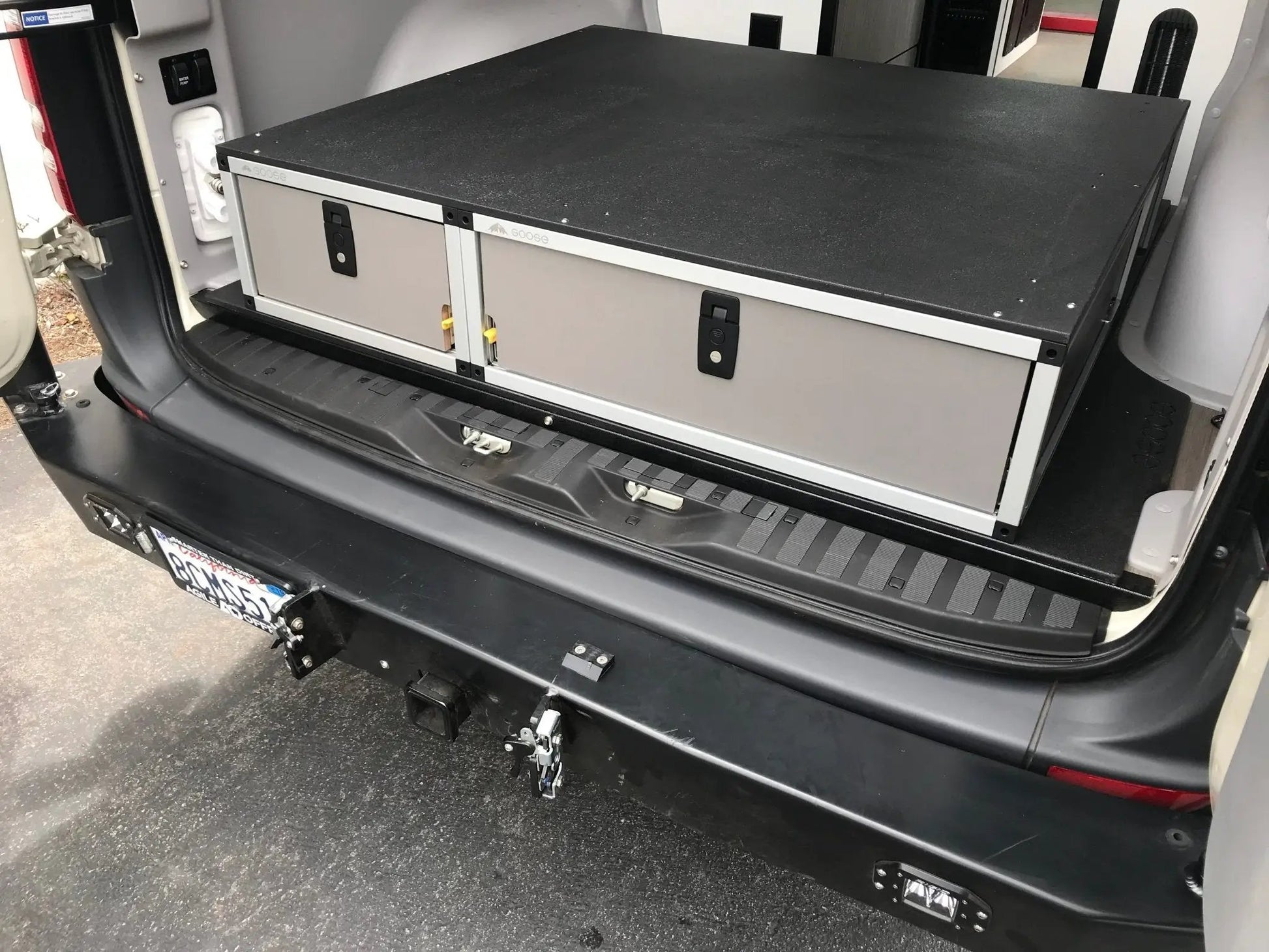

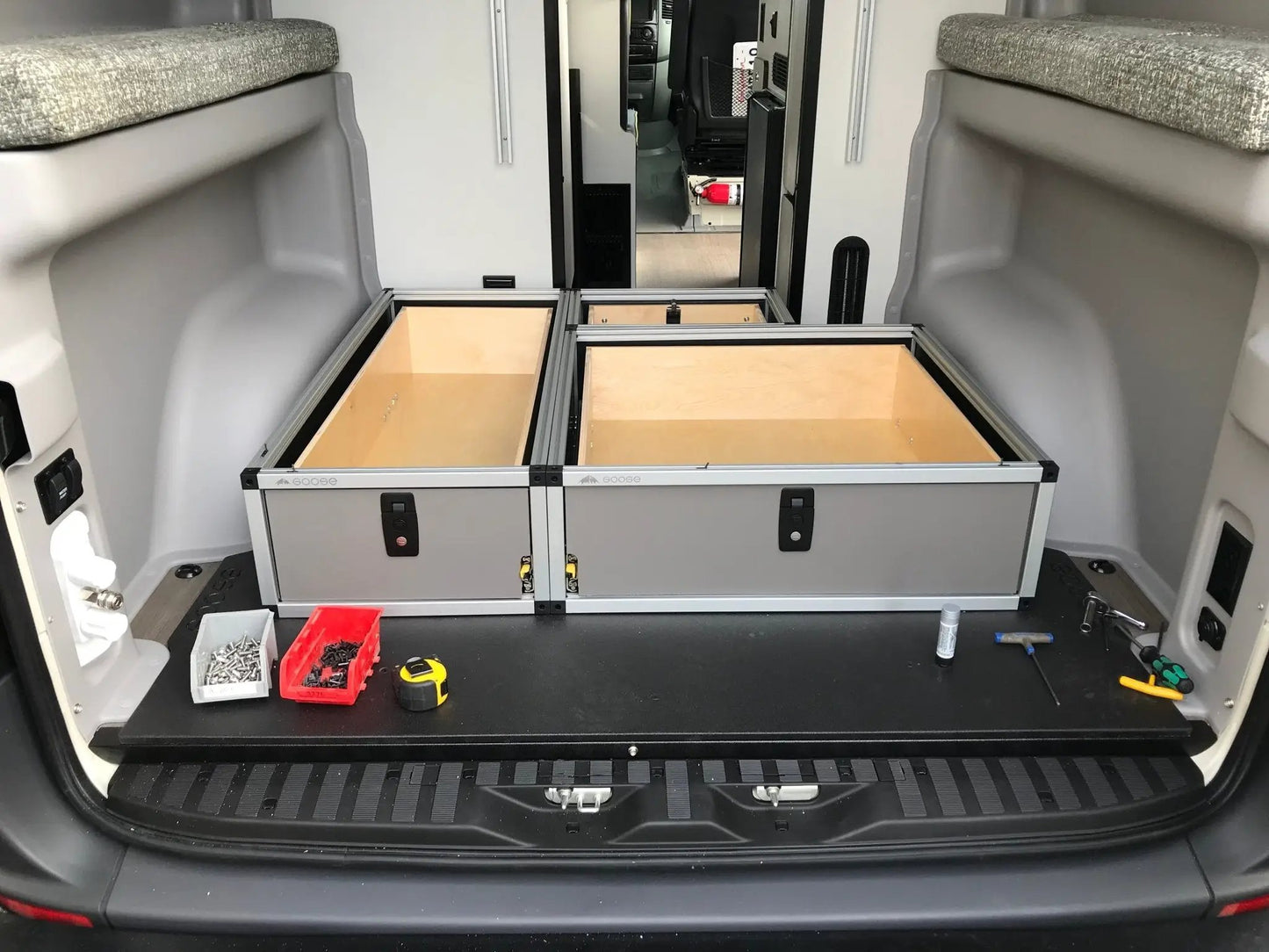

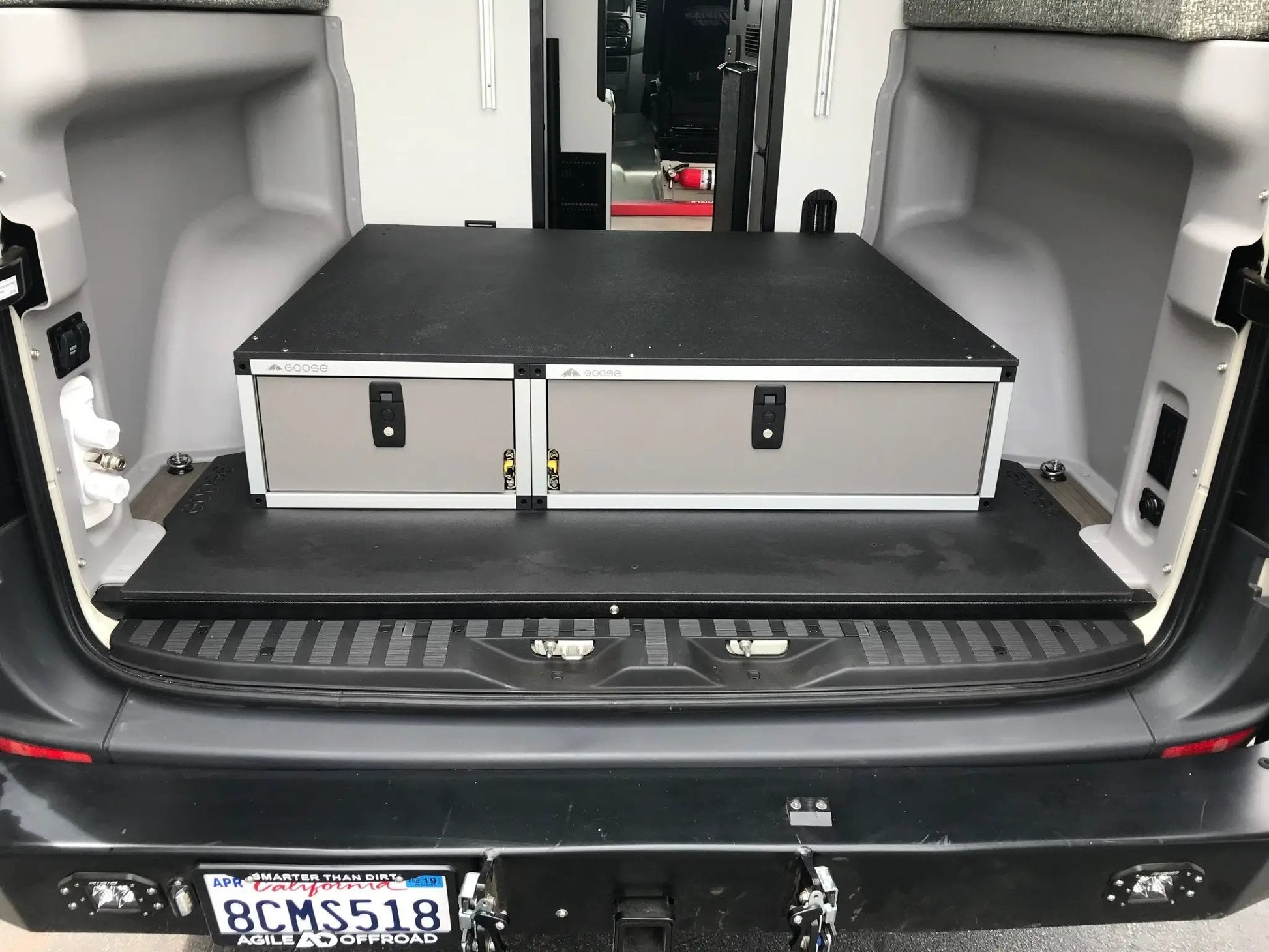

Designed specifically for the Winnebago Revel 2017–2020, this complete base drawer system from Goose Gear includes three drawer modules and a top plate, available in Short and Long lengths to fit your cargo space while preserving heater ventilation. The set ships as a complete, non-customizable package and offers Black or Gray drawer faces for a cohesive interior look.

• Two footprint options: Short System measures 48-3/4" W x 43" D x 10-1/2" H; Long System measures 48-3/4" W x 54" D x 10-1/2" H. Both fit behind the Revel's rear cargo doors while leaving space for gear and access.
• Complete three-drawer set plus top plate: Short total system weight is 156 lb; Long total system weight is 175 lb (sum of all three drawers plus the top plate).

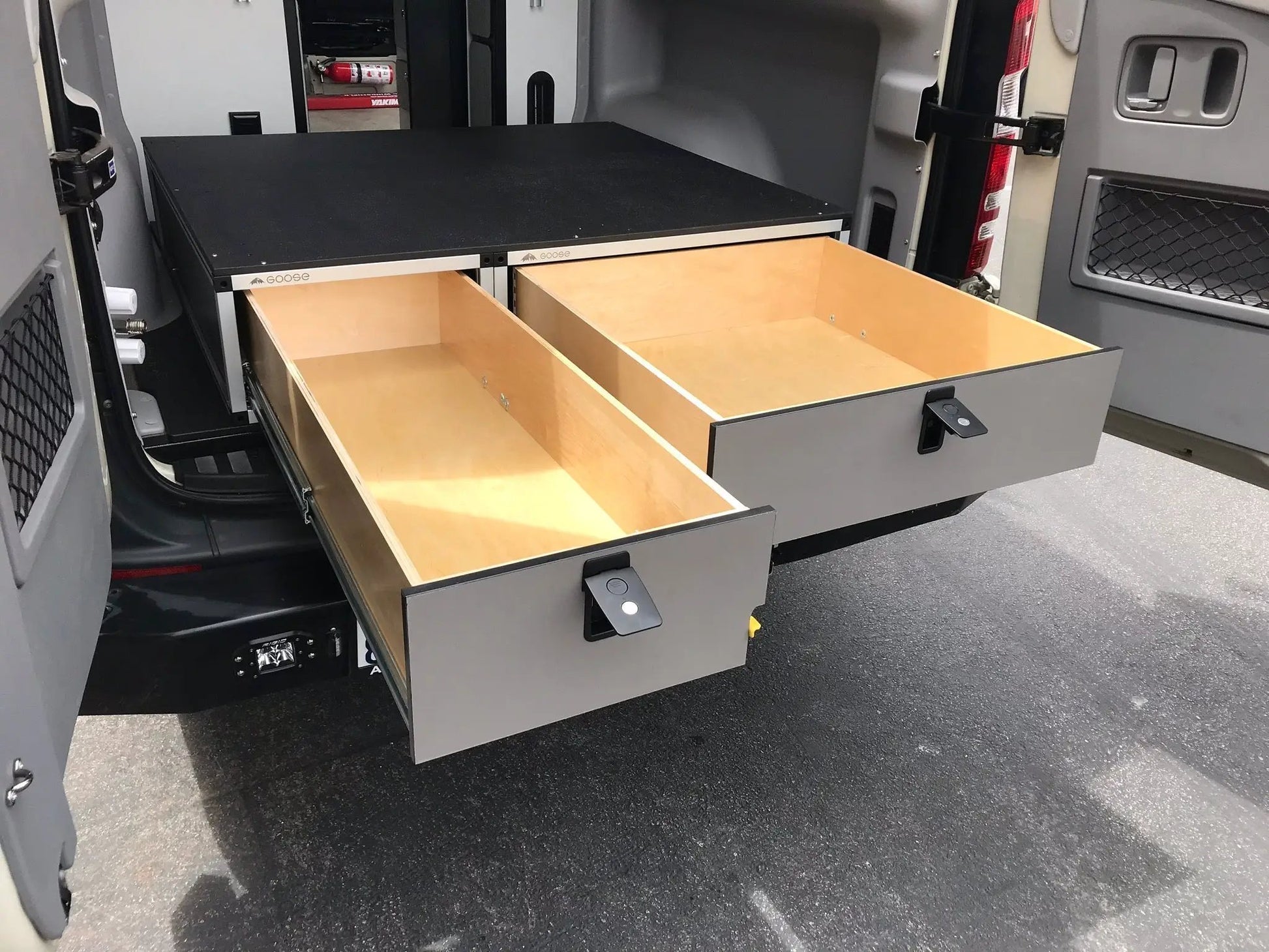

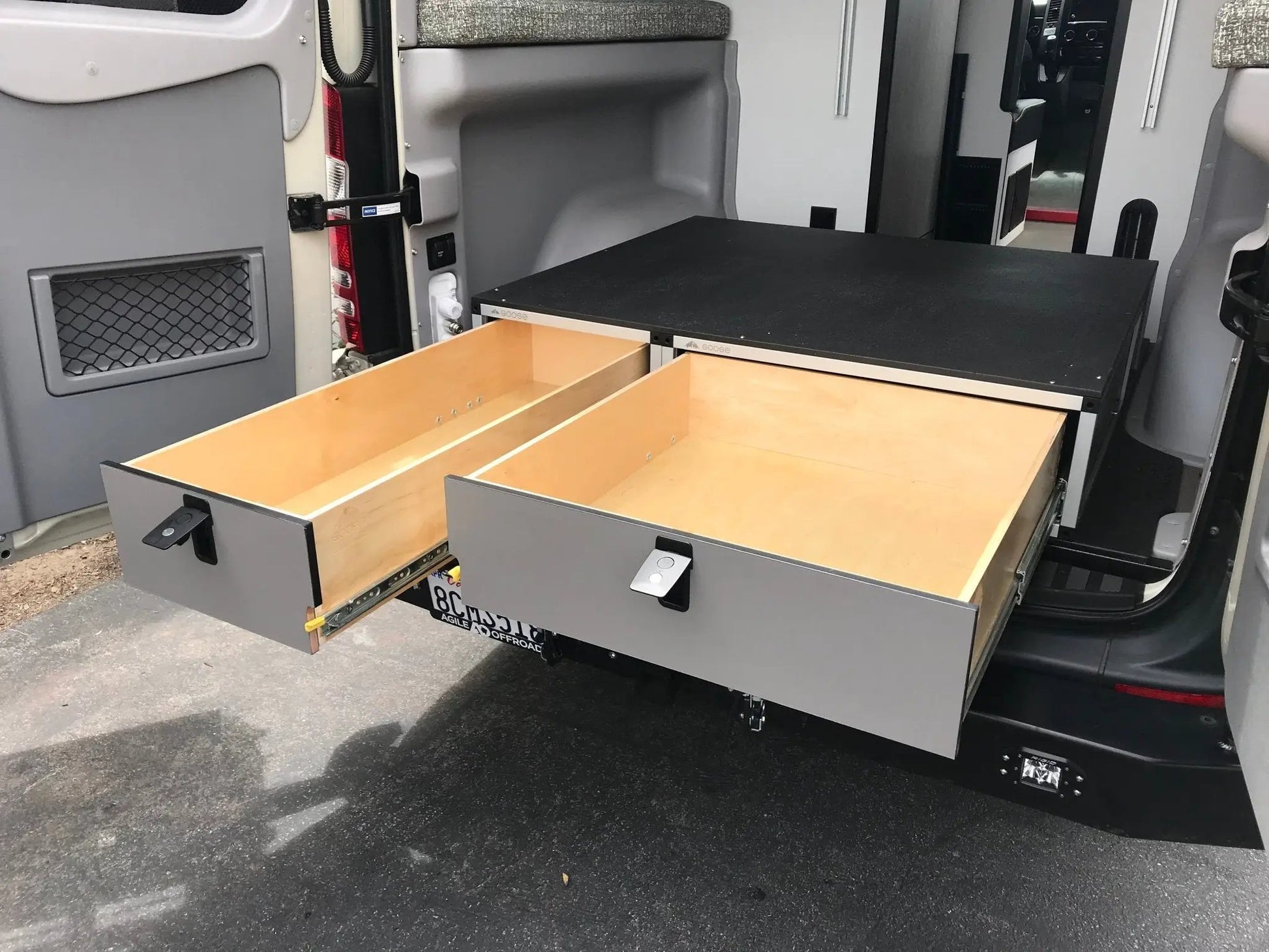

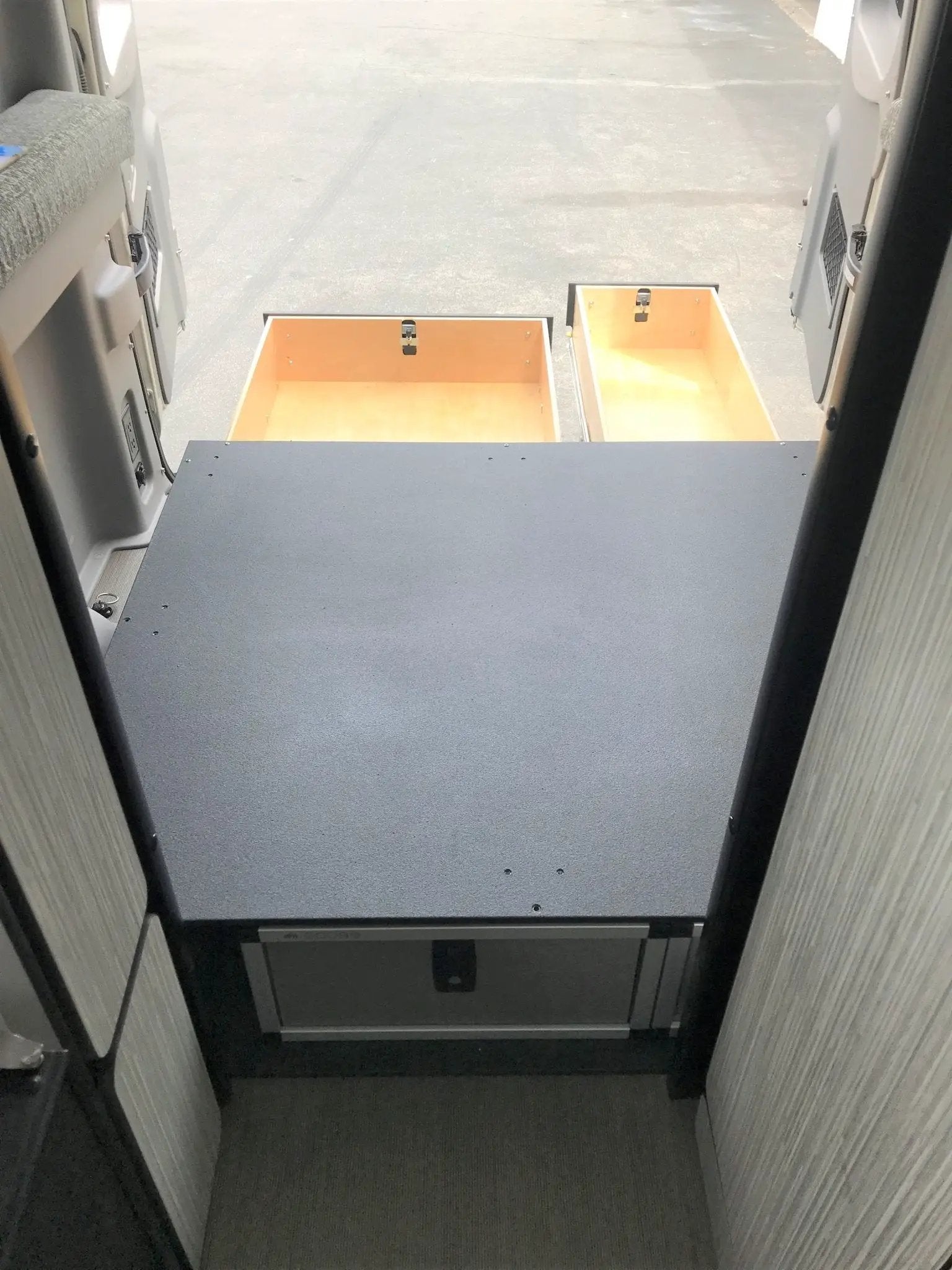

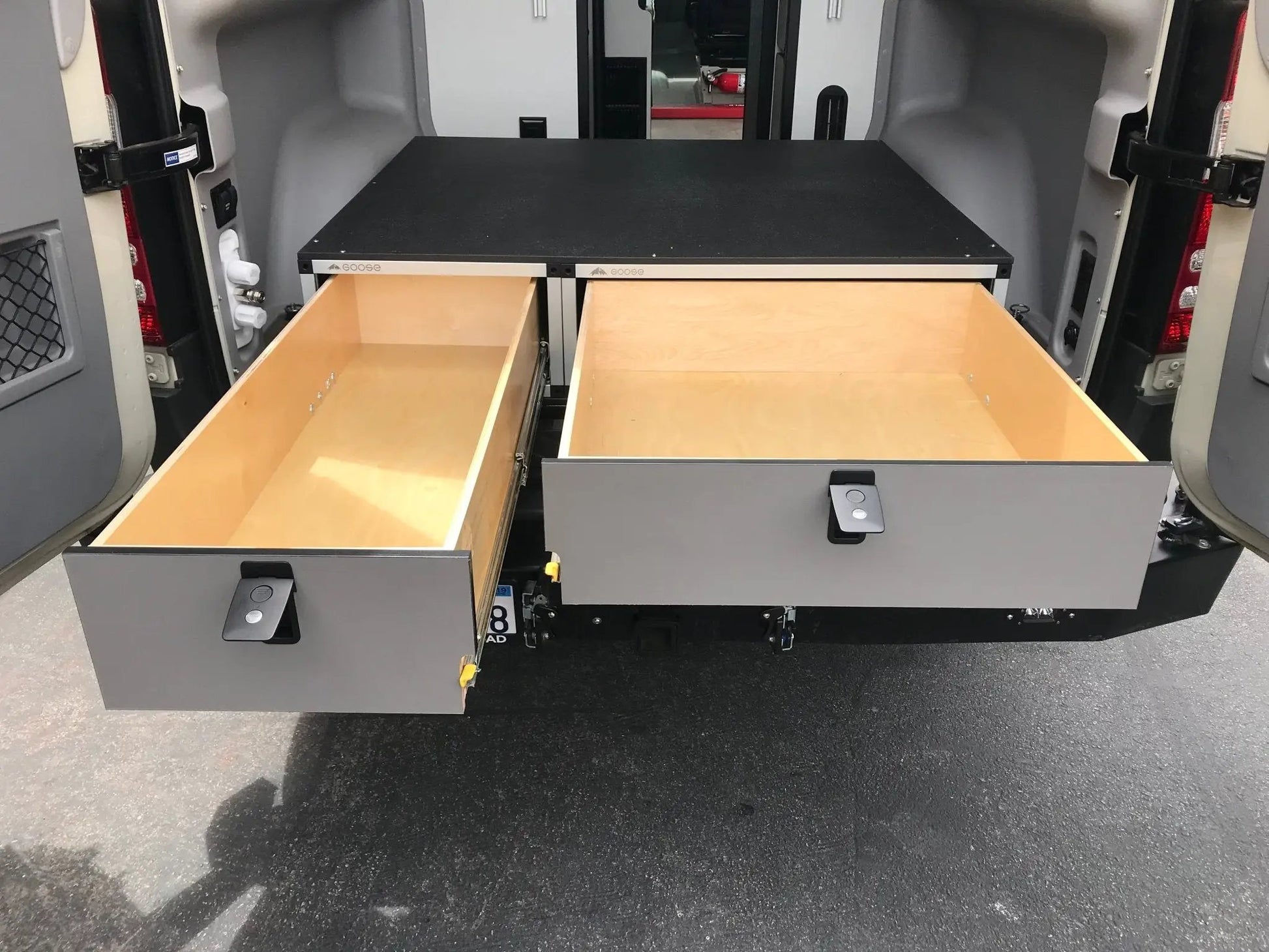

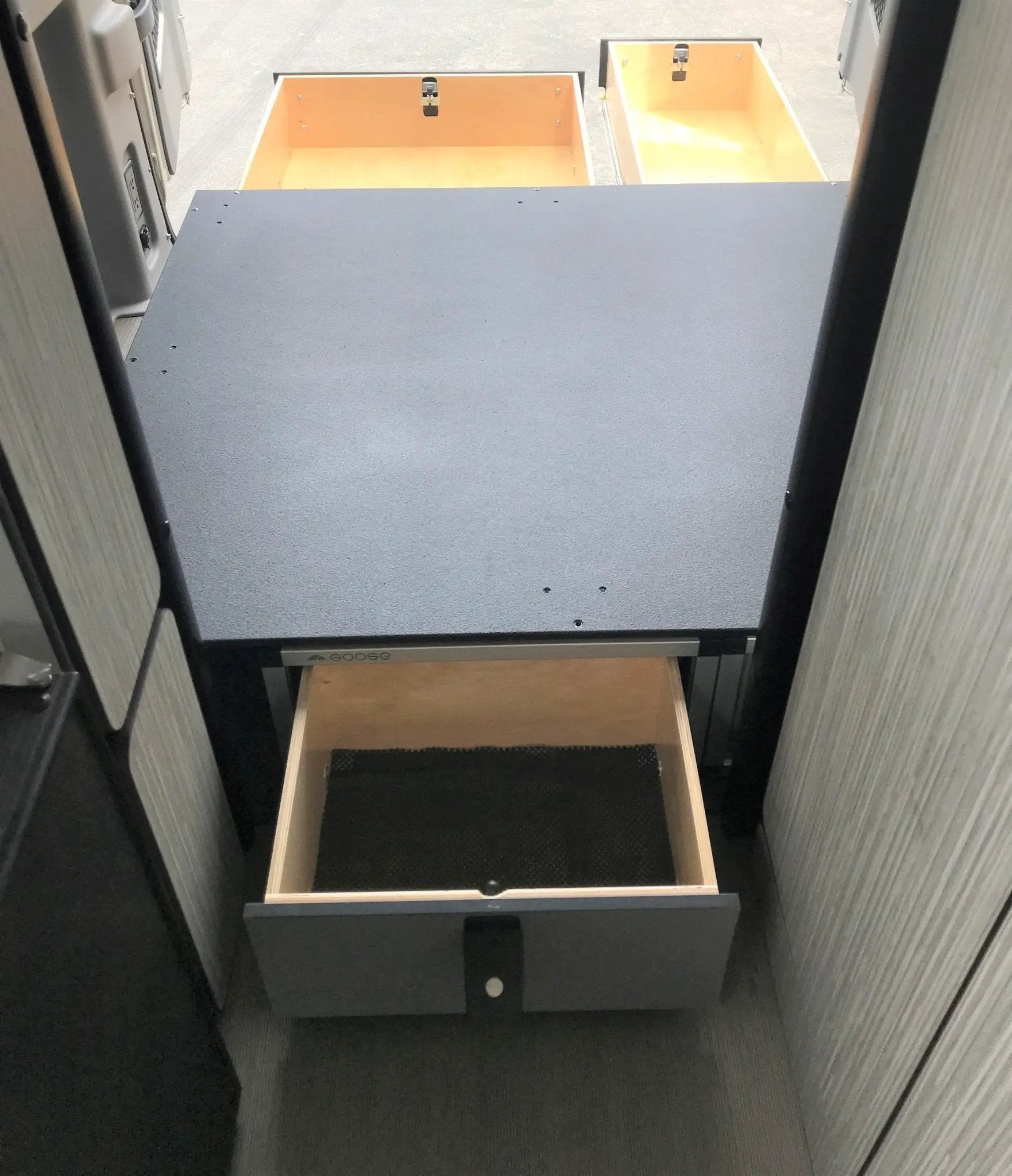

• Drawer layout and locking: Short System — driver rear drawer: 18"W x 43"L with 36" lock-in/out guides and a lockable compression latch; passenger rear drawer: 30-3/4"W x 30"D with 28" guides and a lockable compression latch; middle forward drawer: 20"W x 13"D with 12" guides and a lockable compression latch. Long System — driver rear drawer: 18"W x 54"L with 48" lock-in/out guides and a lockable compression latch; passenger rear drawer: 30-3/4"W x 41"D with 36" guides and a lockable compression latch; middle forward drawer: 20"W x 13"D with 12" guides and a lockable compression latch.
• Top plates: Short Top Plate weighs 32 lb; Long Top Plate weighs 37 lb.
• Finish options: Drawer faces are available in Black or Gray to match your interior aesthetic.
• Ventilation and fit: Both systems retain a non-drawer area to ensure proper heater ventilation; they are designed specifically for the Revel and are sold as a complete set only (not customizable).
• Shipping and installation: This item ships via truck freight with quotes provided; residential delivery may incur a $125 lift-gate fee; for easiest handling, we recommend shipping to a commercial location with a loading dock or forklift.
