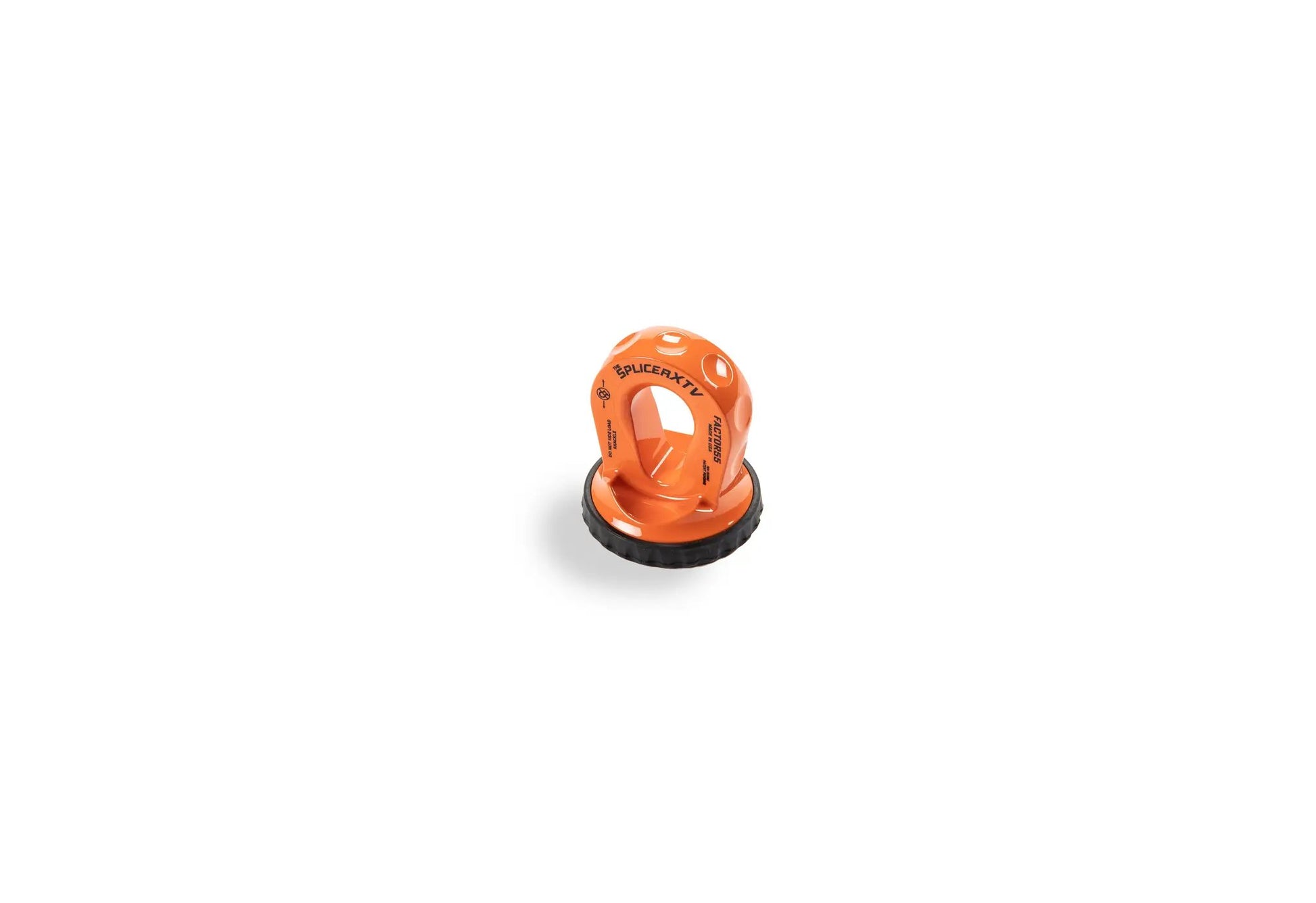

• Factor 55 The Splicer XTV is the world?s first splice on synthetic rope shackle mounting thimble with rope protection and integrated rubber pad for UTV/ATV by Factor 55

Factor 55

Factor 55 The Splicer XTV is the world?s first splice on synthetic rope shackle mounting thimble with rope protection and integrated rubber pad for UTV/ATV

Factor 55 The Splicer XTV is the world?s first splice on synthetic rope shackle mounting thimble with rope protection and integrated rubber pad for UTV/ATV

Подробнее о продукте

00355-07

Out of Stock
$80.60
  • Безопасная оплата
    Платеж с SSL-шифрованием
  • Быстрая доставка
    2–3 рабочих дня

DOES THIS FIT MY VEHICLE?
Продано

Описание

Splicer XTV: The World’s First Splice-On Rope Shackle Mount for UTV/ATV Winches

  • Unique splice-on thimble for rope shackle mounting on UTV/ATV winches, accepting synthetic rope directly into a dedicated rope passage for a clean, protected connection.
  • Rope-protection system with a machined rope passage provides a robust outer barrier against rope impact, abrasion, and UV exposure.
  • Integrated rubber pad cushions the rope, reducing wear and vibration at the shackle interface for longer rope life.
  • Working load limit (WLL) is rope-diameter dependent; ensure the rope matches the splice design and use Brummel Splice or Long Bury Splice for best results.
  • Compact 4.0 x 4.0 x 4.0 in footprint and 0.56 lb weight for straightforward mounting on a wide range of UTV/ATV setups.
  • Designed to exceed minimum bend radius requirements, preserving rope strength and delivering reliable performance under load.

Особенности

  • Intended for use with winches 6
  • 000 lbs. in capacity or less
  • Unlike the Factor 55 ProLink and Flatlink shackle mount products
  • The Splicer requires synthetic rope splicing knowledge. ?We recommend either the locking Brummel Splice or Long Bury Splice
  • The unique machined rope passage provides a tough outer barrier to protect against rope impact and abrasion as well as UV exposure protection.
  • EPDM rubber guards are attached with four barbed tips and protects fairleads and prevents rattling
  • Works with common ?? and 5/8? shackles (pin and bow end)
  • soft shackles up to 7/16?
  • and the pin-end of ?? shackles
  • Compatible with synthetic ropes up to 5/16" in diameter
  • Engineered
  • Tested
  • and Made in USA ? Patent Pending

Характеристики

Размеры

0.56 ФНТ
Weight

SHIPPING INFORMATION

This item ships in its original packaging. Dimensions and weight are used to calculate shipping costs.

Гарантия и защита

Гарантия производителя

This product comes with 1 years warranty coverage.
