• Factor 55 The FlatLink MultiMount is a multiple shackle mount designed for advanced recovery techniques. by Factor 55
  • Factor 55 The FlatLink MultiMount is a multiple shackle mount designed for advanced recovery techniques. by Factor 55
  • Factor 55 The FlatLink MultiMount is a multiple shackle mount designed for advanced recovery techniques. by Factor 55

Factor 55

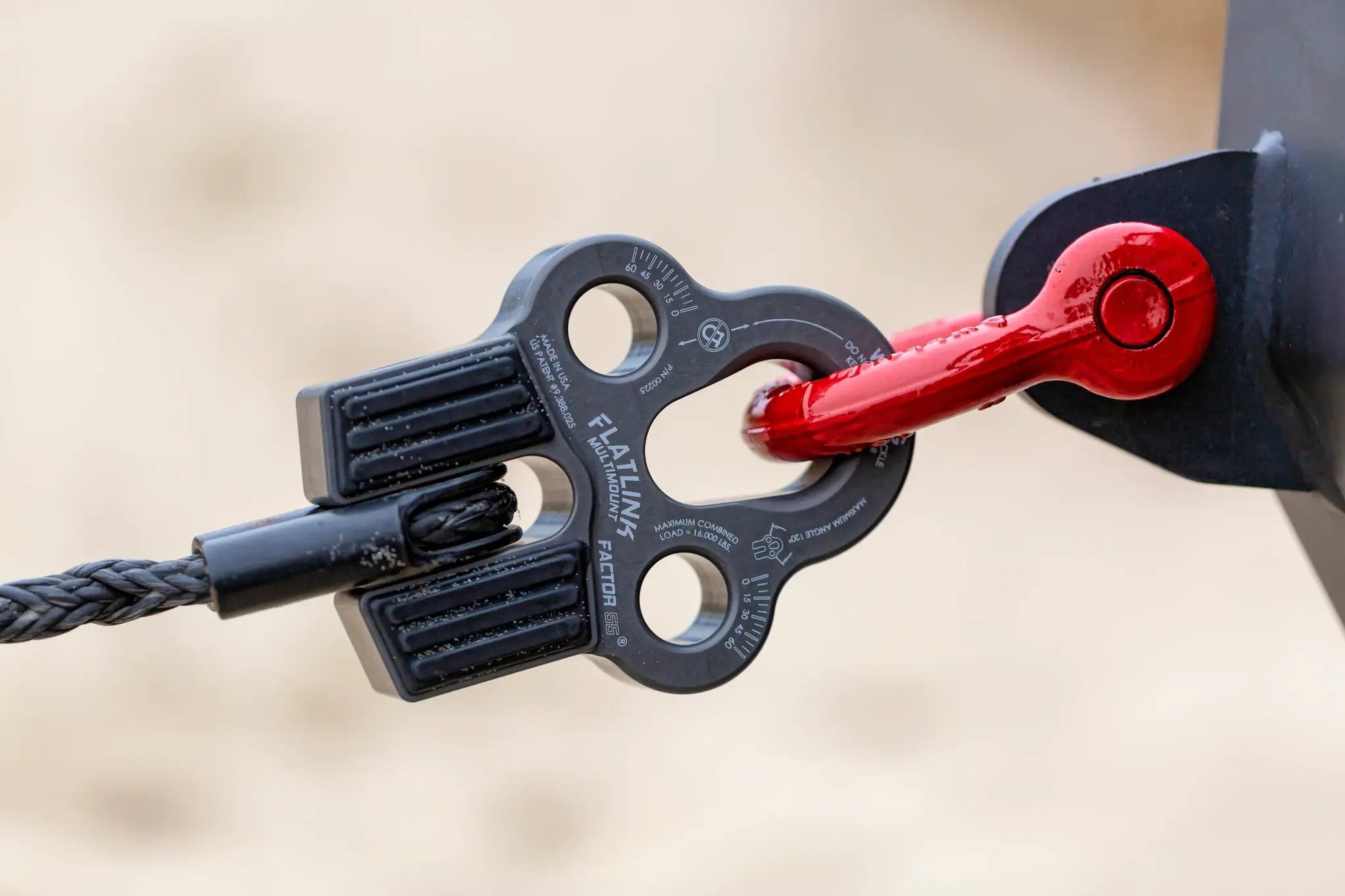

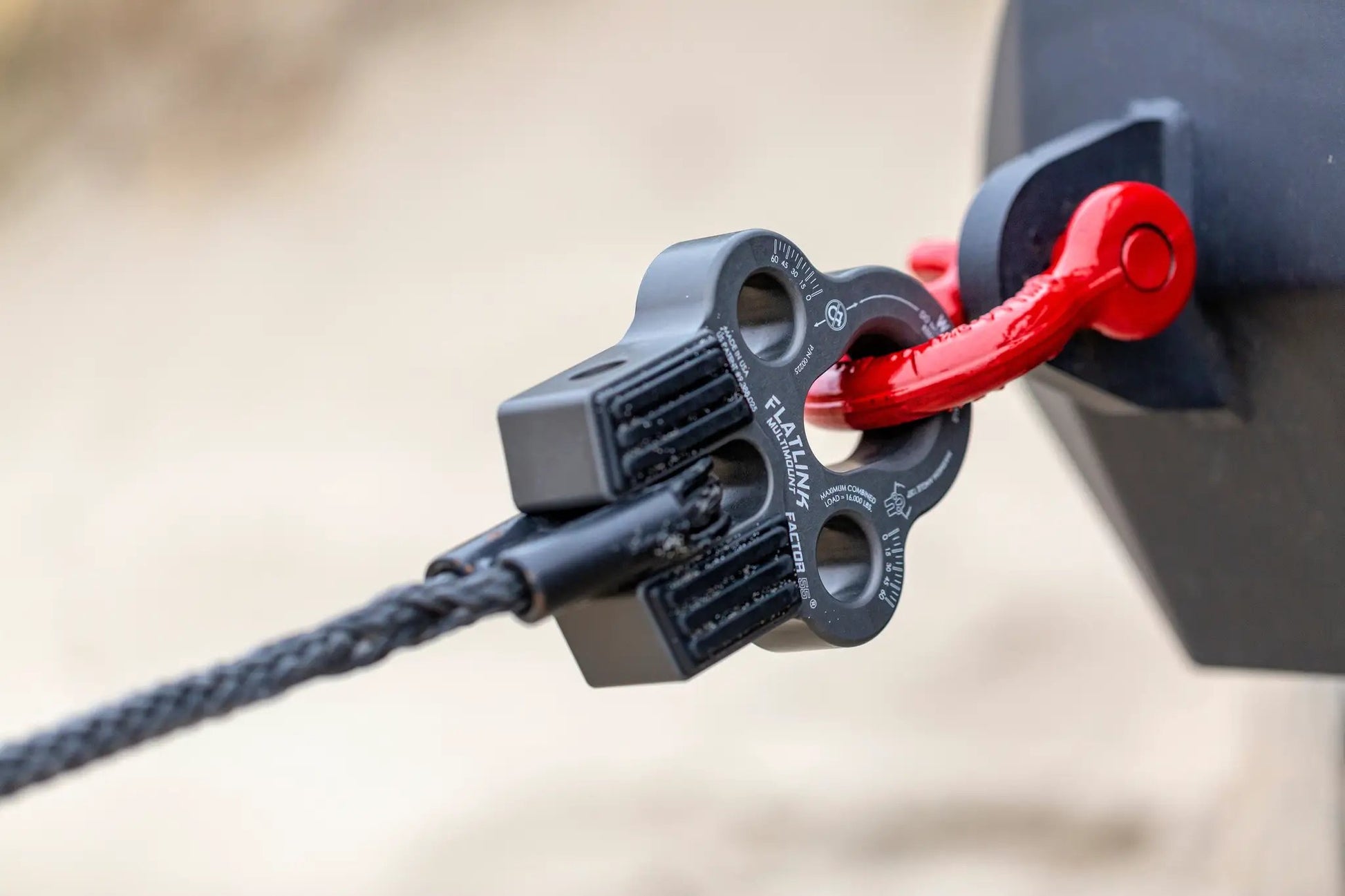

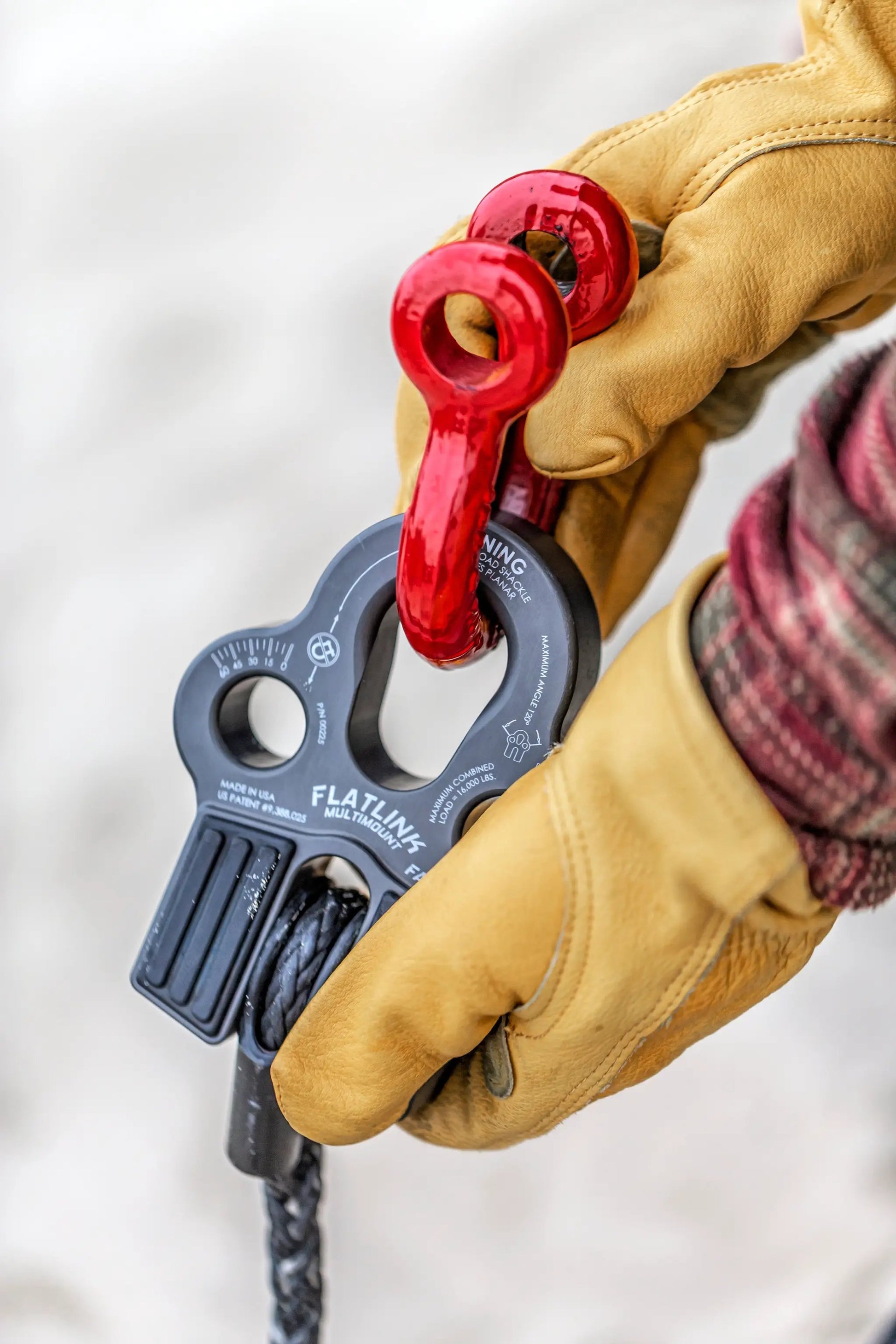

Factor 55 The FlatLink MultiMount is a multiple shackle mount designed for advanced recovery techniques.

Factor 55 The FlatLink MultiMount is a multiple shackle mount designed for advanced recovery techniques.

Подробнее о продукте

00225-07

Out of Stock
$297.70
  • Безопасная оплата
    Платеж с SSL-шифрованием
  • Быстрая доставка
    2–3 рабочих дня

DOES THIS FIT MY VEHICLE?
Продано

Описание

Factor 55 The FlatLink MultiMount: a modular shackle mounting solution designed for advanced vehicle recovery in challenging off-road scenarios.

  • Two additional shackle pin mounting holes provide secure attachment points for multiple winch pull directions, expanding recovery options without swapping hardware.
  • The center hole secures a bow shackle or soft-shackle from either end, offering a stable, centralized mounting point for versatile loads.
  • Shackles are free to rotate and align to the load directions at the MultiMount interface, eliminating side loading and improving load distribution.
  • Bridle recoveries are supported by using the two outer shackle pin holes in combination with standard bridle rigging for controlled, multi-point pulls.
  • Fold-flat design lets the MultiMount sit flush against the fairlead surface when stowed, preserving vehicle approach angles and reducing snag risk.
  • Compact and lightweight at 5 in L × 7 in W × 5 in H and 2.13 lb; Engineered, tested, and made in the USA by Factor 55.

Особенности

  • The two additional shackle pin mounting holes provide secure shackle attach points for multiple winch pull directions
  • while the center hole provides a secure conventional center pull shackle mount point. This arrangement eliminates any shackle side loading forces at the Multimount interface ( Shackles are free to rotate and align to the load directions)
  • Winching with a bridle arrangement is also possible by using the two outer shackle pin mounting holes in combination with common bridle rigging
  • When folded flat ? less than 1.75 inches of thickness
  • Fits steel cables and synthetic winch ropes to 3/8 inch diameters
  • EPDM Rubber Guard protects alloy fairleads and cushions line stowage
  • Precision machined from 6000 series aluminum
  • Max load rating : 16
  • 000 pounds
  • Engineered
  • tested
  • and made in USA ? Patent pending.

Характеристики

Размеры

2.13 ФНТ
Weight

SHIPPING INFORMATION

This item ships in its original packaging. Dimensions and weight are used to calculate shipping costs.

Гарантия и защита

Гарантия производителя

This product comes with 1 years warranty coverage.
